Slimtile Installation Step by Step
Step 1 - Prepare your Space and Tools
Before you Start!
Acclimatize your Slimtile panels in the room where they will be installed for a minimum of 48 hours.
Make sure they rest at least 20 inches away from the walls during this time. The ideal temperature is under 70 degrees F while they acclimatize.
Required Installation Materials -
- Slimtile panels
- Tape measure
- Pencil
- Level
- Utility knife or other cutting tool
- Loctite PL Premium Adhesive (recommended)
- Optional: silicone sealant for joints in wet or humid areas (e.g., shower)
Prepare your space!
You can install these panels directly over existing tile or painted drywalls. Make sure the installation area is clean, dry, and level before prepping for installation. If installing over tiles in a wet area, such as a shower, use silicone sealant over the joints.
Read the manual inside the packaging!
Always refer to the detailed instructions included with your Slimtile panels for specific guidelines and important tips.
Step 2 - How to Measure and Cut Slimtiles
Measuring -
Double check the measurements of the wall area you will be covering with Slimtiles. You should account for 10% overage for cuts.
Cutting -
Cut or saw your panels to the desired size. Use a fine utility knife or another cutting tool. You may need to score over a cut several times with a utility knife.
Check your fit before applying your adhesive.
Step 3 - Install Slimtile Panels
Place the first row -
If desired, first place a profile. Start at the bottom of the wall and work from right to left. Apply adhesive to the back of the panel or directly onto the surface in vertical zigzag stripes. You can also nail or staple Slimtiles in place. Press the panel firmly against the wall to secure it and make sure it is level.
Connect the next row -

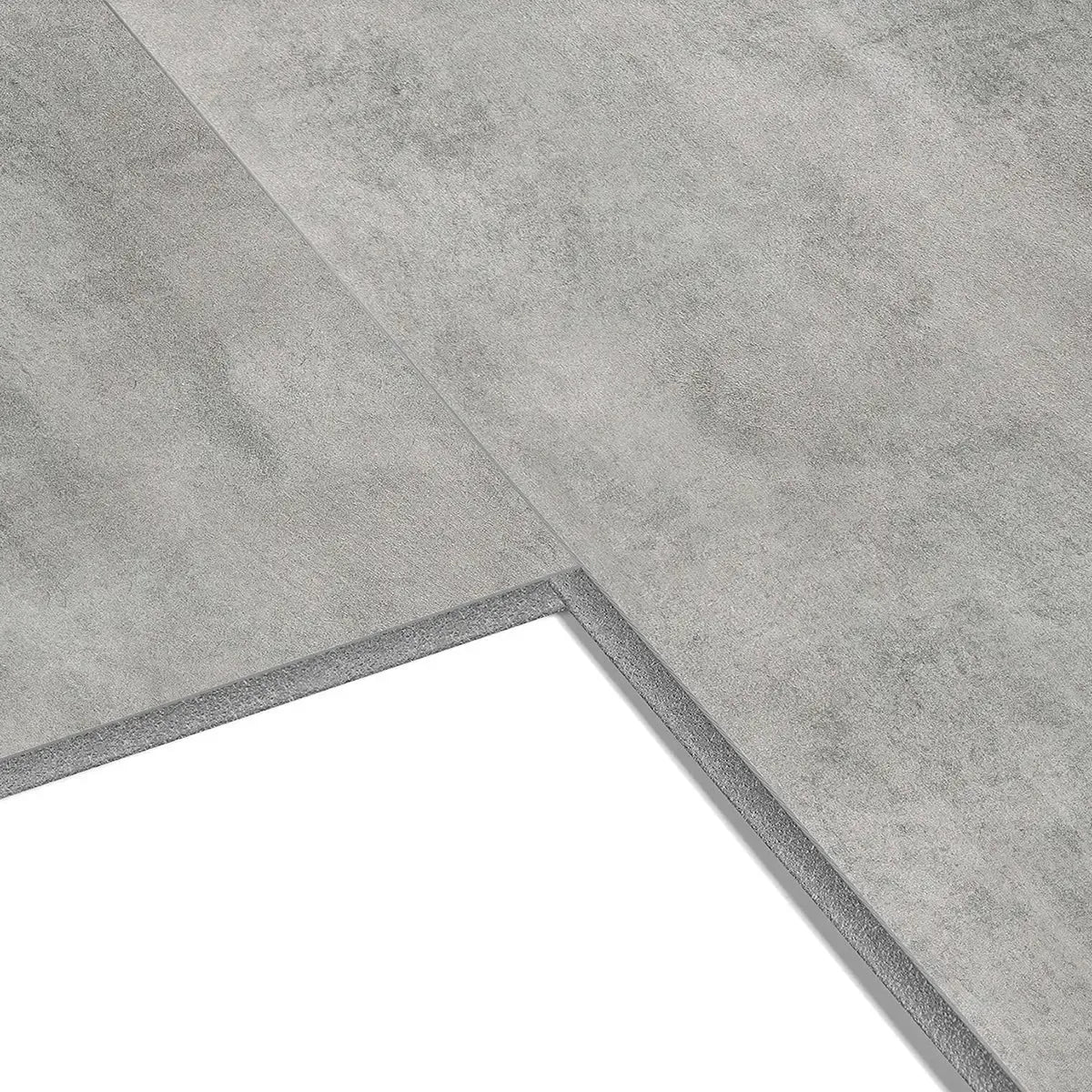

Use the tongue-and-groove connection to easily join panels together.
- If installing in a wet or humid area such as a shower, apply silicone in the groove between each panel.
Continue for the rest of your covered area!
